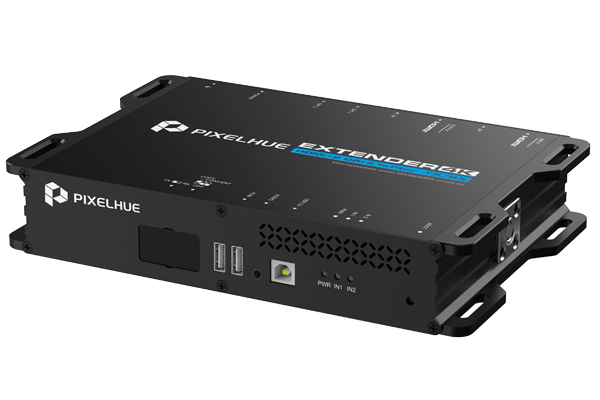

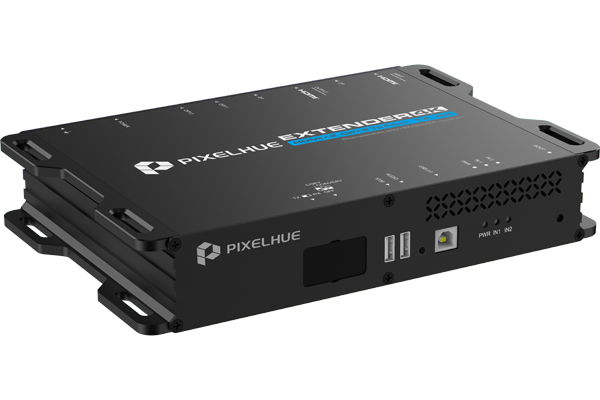

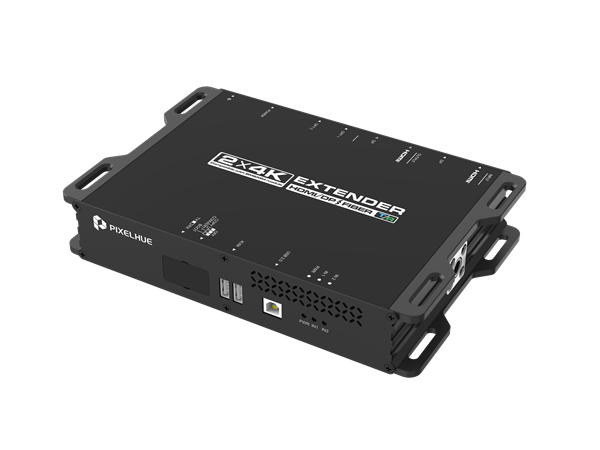

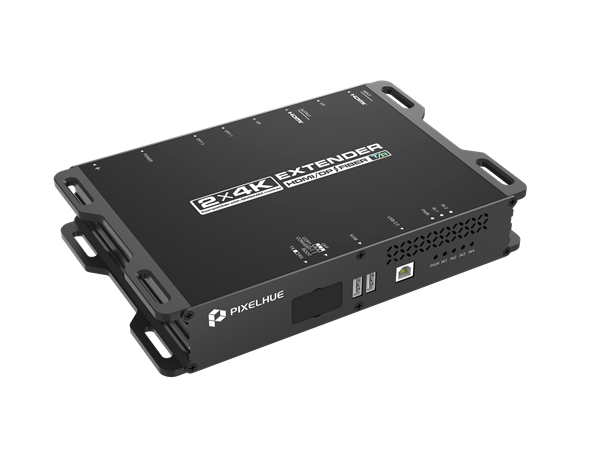

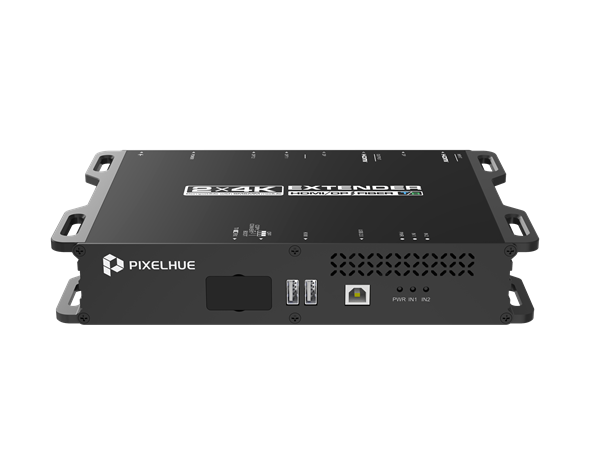

The EP2 fiber extender employs advanced fiber optic technology for flawless, long-distance video and audio transmission via optical fiber, surpassing traditional cable limitations.
Featuring 8-bit/10-bit lossless compression, the EP2 offers unparalleled video signal quality (4Kx2K@60Hz), ensuring a stunning visual experience. Its compact, plug-and-play design simplifies installation, allowing seamless signal extension without hassle.

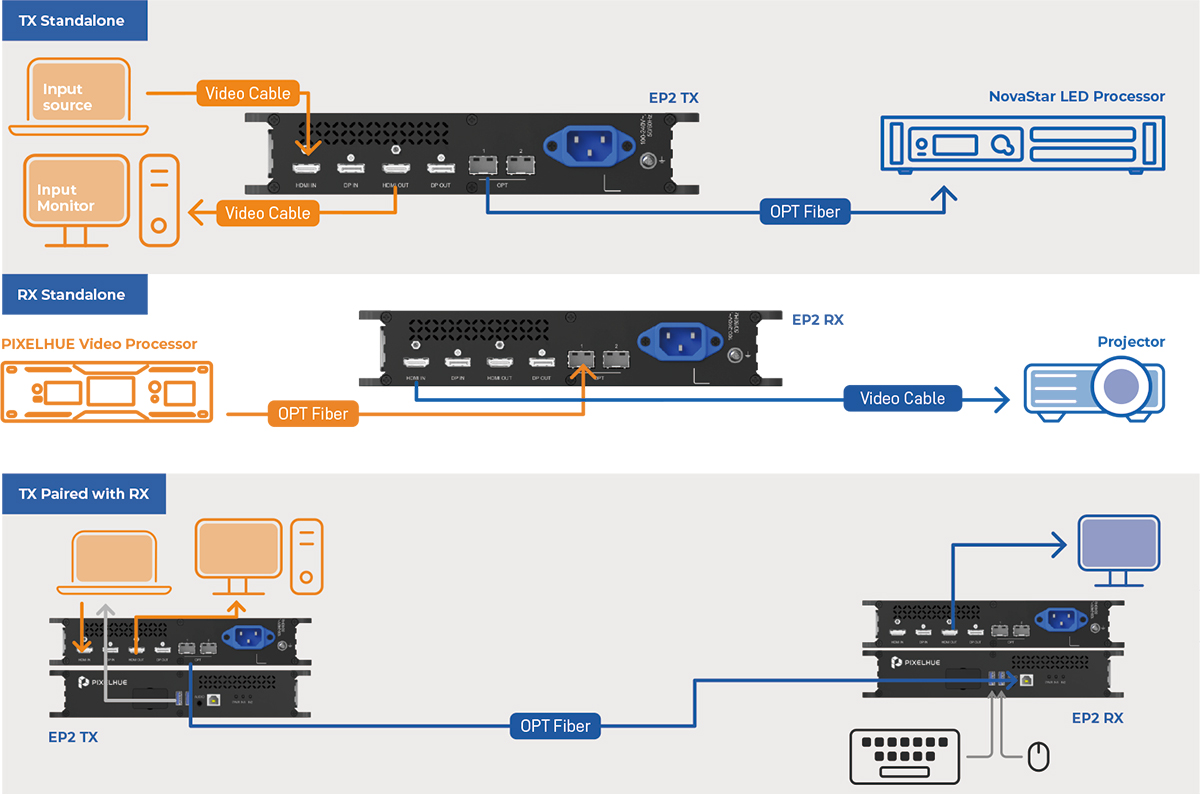

Versatile and reliable, the EP2 is perfect for home theaters, conference rooms, and monitoring centers, delivering stable HD video over extended distances for both commercial and personal applications.

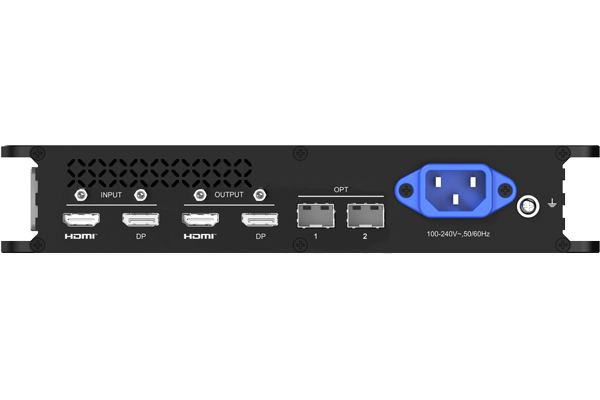

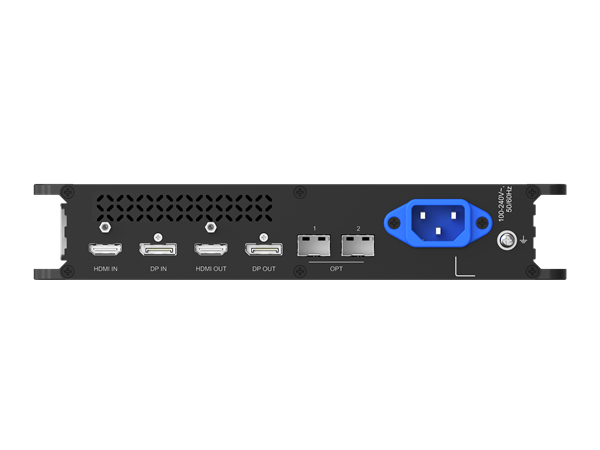

| Quantity |
1 × HDMI 2.0 |
| Standard |
HDCP 2.2 compliant, backwards compatible with HDCP 1.4 |
| Resolution |
Max input resolution: 3840×2160@60Hz |
| Quantity |
1 × HDMI 2.0 |
| Quantity |
2× 10G OPT |
| Standard |
HDCP 2.2 compliant, backwards compatible with HDCP 1.4 |
| Resolution |
For RX and TX paired use, a single OPT port resolution: up to 3840×2160@60Hz |
| Quantity |
1 × DP 1.2 |
| Standard |
HDCP 2.3/HDCP 2.2/HDCP 1.4 compliant,backwards compatible with HDCP 1.3 |
| Resolution |
Max input resolution: 3840×2160@60Hz |
| Quantity |
1 × DP 1.2 |
