DUAL Touch

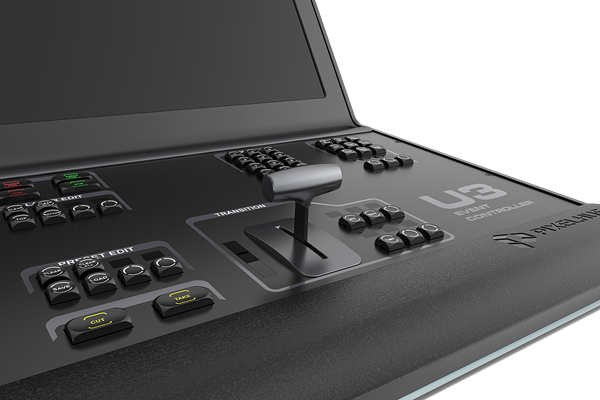

Highly Sensitiv T- bar
MuLti-Layers
Presets
Re-nameable Oled
Variety Sources

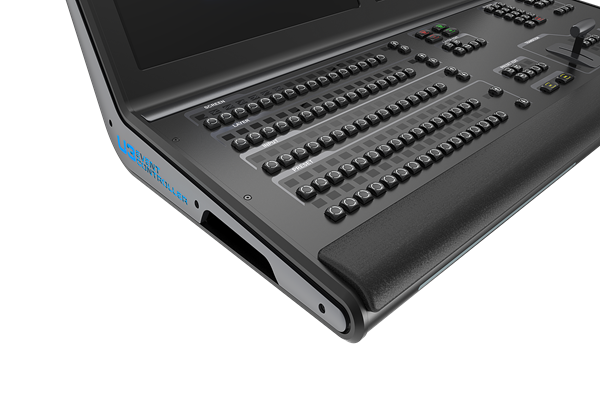

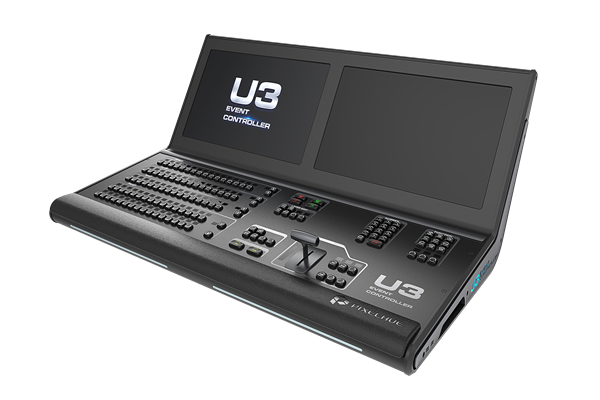

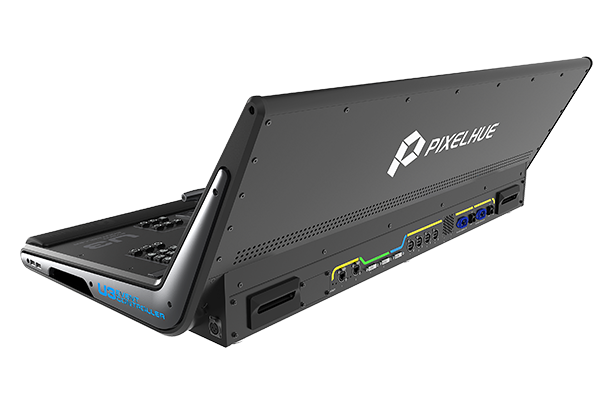

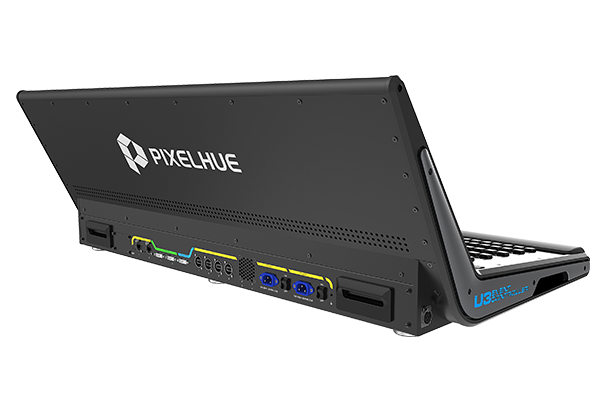

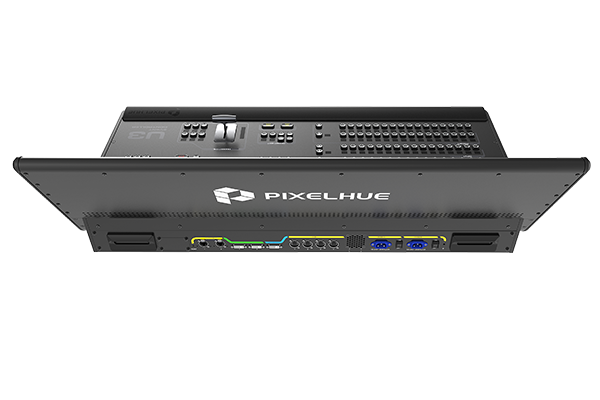

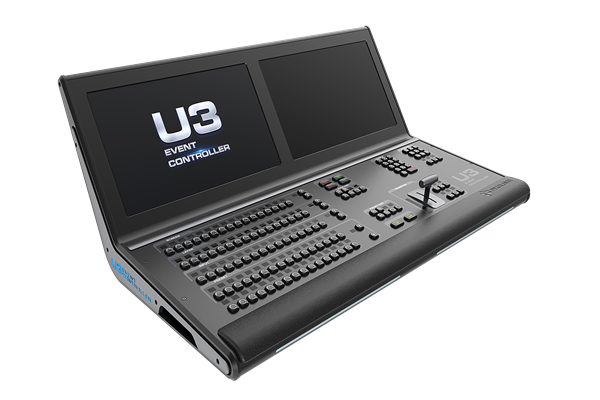

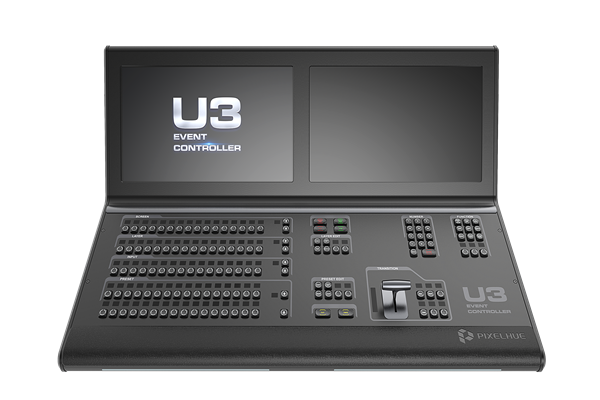

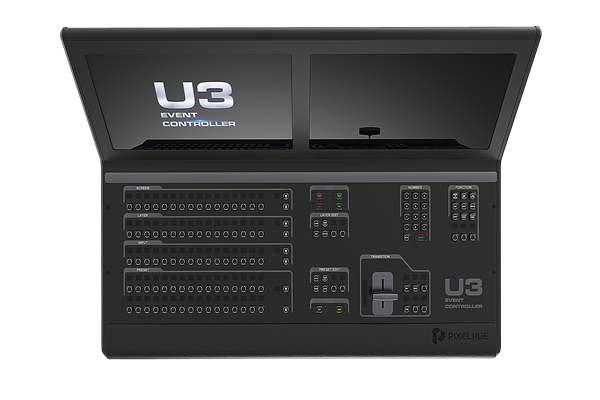

The U3 is a live event controller developed by PIXELHUE. With integrated intelligent, highperformance
event management software Triton, the U3 is capable of receiving, processing, and
monitoring multiple inputs and outputs at your fingertips.
The U3 can simultaneously control up to eight Flex-View Event Presentation Switchers to realize
synchronized operations on multiple switchers, greatly simplifying your on-site deployment and
bringing more convenience and ease to your event.
The U3 undoubtedly has become an ideal video operating tool for a wide range of events today,
such as large live conferences, various interactive live shows, music tours, and immersive art
exhibitions.
|
Dimensions (with handles, rack ears & rack mount) |
W 1100 × D 674.8 × H 388.8 mm 43.3 × 26.6 × 15.3 inches Please refer to the dimension diagram for more details. |
|
Product Net Weight |
32 kg / 70.5 lbs (Net weight) 84 kg / 185.2 lbs (With Accessories and flight case) |
| Noise on Average (@1, 0.75m height) |
Front: 50 dB Rear: 50 dB |
| Electrical Parameters |
Dual backup power supply Power connector: AC100 V‒240 V 50/60Hz Max power consumption: 115 W Power consumption: 100 W on average |
| Operating Conditions |
Temperature: 0°C to 50°C Humidity: 0% RH to 85% RH, non-condensing |
| Safety Compliance |
|
| Packing Information |
3 × Power cords 2 × DVI cables 1 × CAT5e Ethernet cable 1 × T-Handle Hex Key 1 x Dust cover 1 × Flight Case 1 x Certificate of Approval 1 x Customer Letter 1 × Quick Start Guide 1 x Safety Manual |
