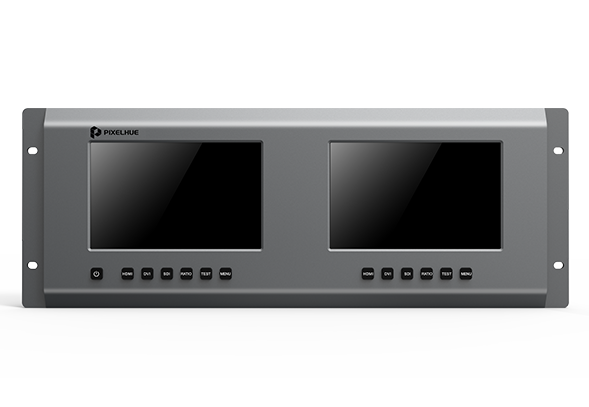

The VM Dual is a video monitoring device with a compact rack mount design. It is equipped with two
independent 7" TFT displays, and supports SDI, HDMI and DVI connectors.

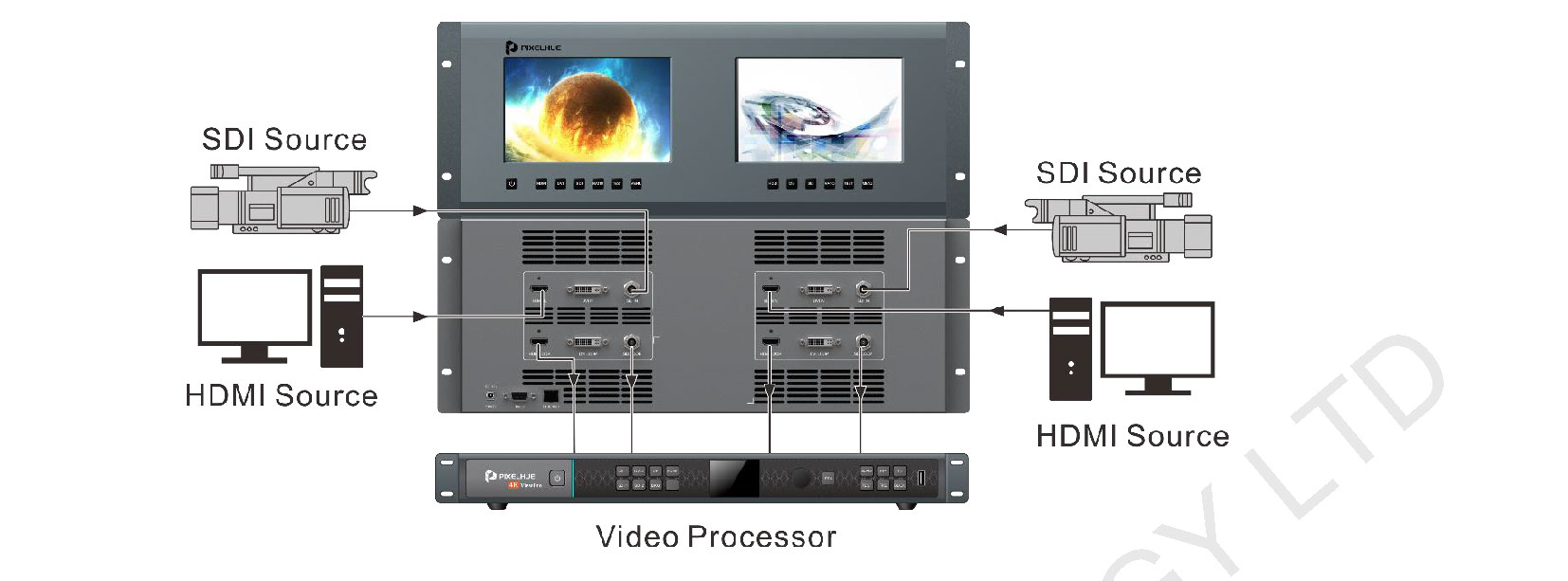

The VM Dual can be installed in flight cases, outside broadcast vans, equipment racks, film editing
workshops and other places requiring high quality video monitoring, which is ideal for post-production,
broadcasting and on-site monitoring, as well as video input monitoring.
| Electrical specifications | Operating voltage | DC 12 V (outer polarity: negative; inner polarity: positive) |
| Max. power consumption | 24 W | |
| Input and output | Max. video width | 3840 |
| Max. video height | 3840 | |
| Min. video width | 800 | |
| Min. video height | 600 | |
| Operating environment | Operating temperature | 0°C–50°C |
| Storage temperature | -20°C–60°C | |
| Operating humidity | 10% RH–90% RH | |
| Physical specifications | Dimensions | 482.6 mm × 177.0 mm × 41.0 mm |
| Net weight | 2.90 kg | |
| Total weight | 6.14 kg | |
| Packing information | Carrying case | 530mm × 140mm × 370mm |
| Accessory box |
405mm × 290mm × 48mm 1×Four-plug adapter, 1×DVI cable, 1×HDMI cable, 1× HDMI to DVI cable, and 1× User manual |
|
| Package dimensions | 550mm × 400mm × 175mm | |
| Certifications | CE, FCC, IC, RoHS | |
| Noise Level (typical at 25°C/77°F) | 55dB(A) | |
