4K
DVI
The DVI-HBT video extender adopts HDBaseT technology to realize long-distance
transmission of DVI signal.
DVI-HBT-T supports 1x DVI input and 1x HDBaseT output, with the same resolution of

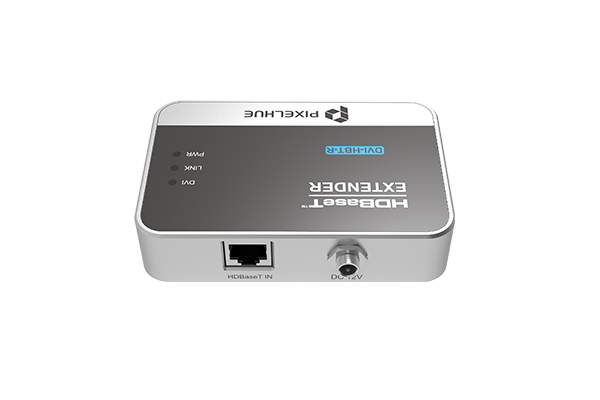

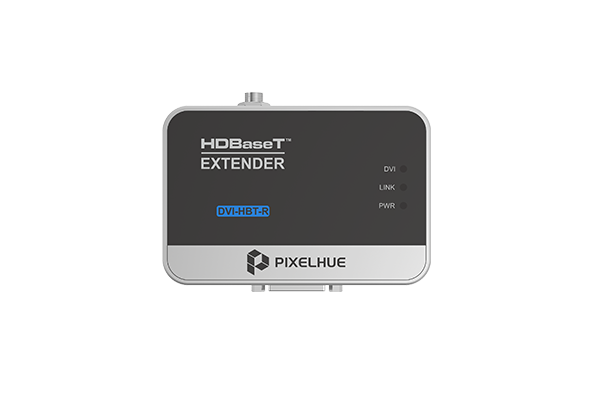

1920×1080@60Hz. DVI-HBT-R supports 1x HDBaseT input and 1x DVI output, with the
same resolution of 1920×1080@60Hz.

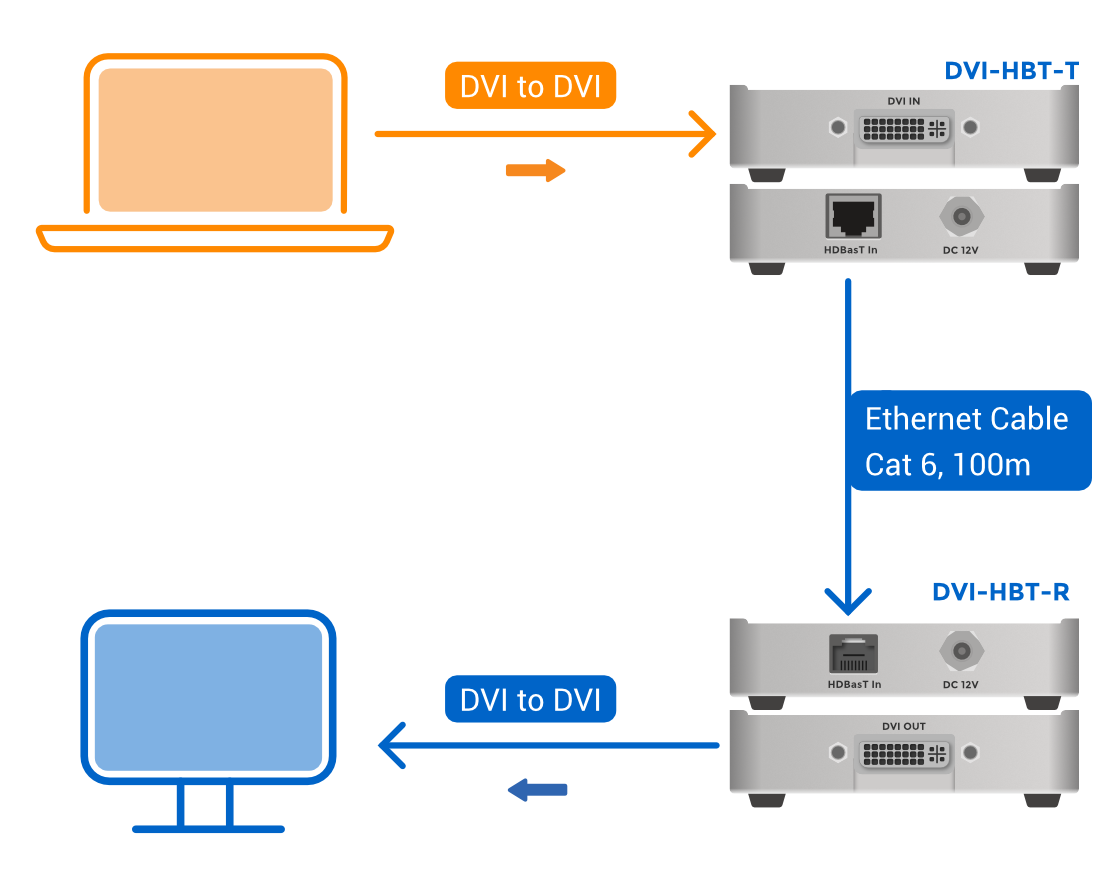

With both DVI-HBT-T and DVI-HBT-R, HDBaseT connector supports 100-meter
transmission distance by using only one CAT 6 Ethernet cable. This solves the problems
of bad transmission and image interference due to long Ethernet cable, and improves the
DVI signal transmission distance and image quality.
| Input Connector | QTY | Description |
| DVI IN | 1 |
DVI-D Single Link 18+1 input connector
Supports input resolutions up to |
| Indicator | Description | |
| HDMI |
On: The HDCP-encrypted input source is accessed. Off: The input source is not accessed. Flashing: The input source is accessed but not used. |
|
| LINK |
On: Data is being transmitted. Off: HDBaseT connector is not connected. Flashing: DVI connector is not connected. |
|
| PWR |
On: Power supply is connected. Off: Power supply is not connected. |
|
| Output Connector | QTY | Description |
| HDBaseT OUT | 1 | HDBaseT output connector is used for data transmission. |
