DVI
4K

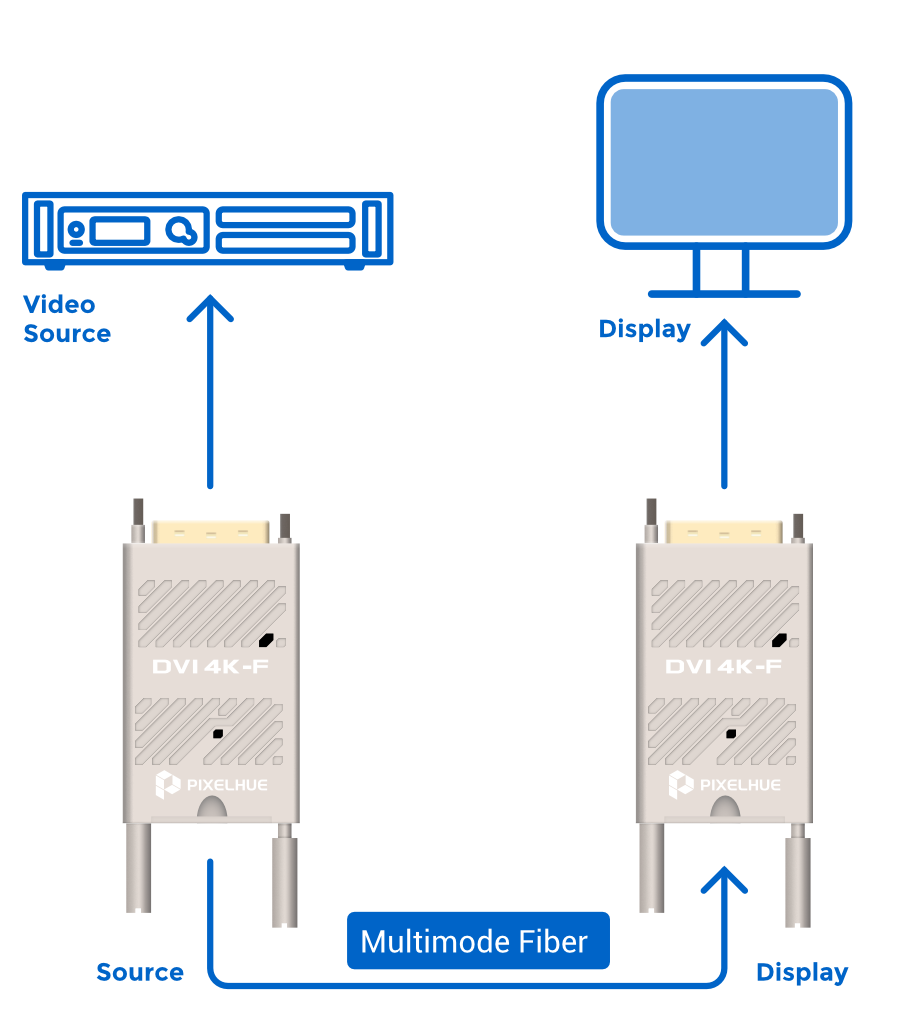

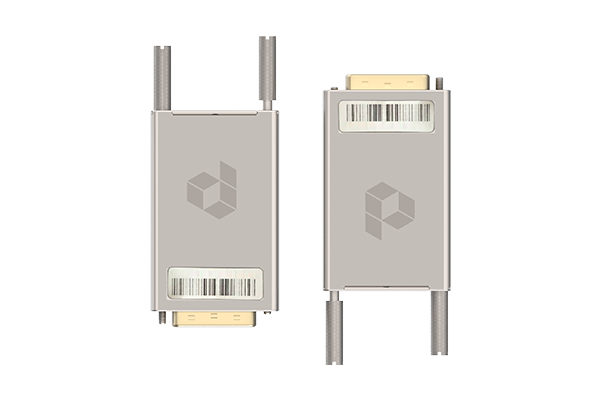

DVI4K-F extender, including one DVI4K-F transmitter (COMPUTER TX, Source ) and one
DVI4K-F receiver (MONIONTOR Rx, Display ). DVI-D (18 + 1) media interface, completed
300m ITU-T.G652 /G.655 SMF single-mode, OM1 / 2 / 3 / 50um / 125um multimode)
lossless uncompressed video 10G high-speed extended transmission.
The optical path adopts single fiber bidirectional WDM optical wavelength division
multiplexing technology to ensure the electrical isolation of TMDs differential source and
display end equipment, avoid the noise impact with the grounding circuit, and no video
signal frame delay. Compared with the traditional twisted pair cable transmission, it has
many advantages, such as no attenuation, strong anti-interference, strong signal
confidentiality, high stability, hot swap protection, long transmission distance, and the
signal does not lose due to the transformation of the external environment.
| Interface Type |
DVI-D(18+1), DVI1.0 |
| Signal Type |
DVI 1.0, HDMI 1.4a, up to 4096 × 2160@30Hz |
| Interface Type |
LC |
| Signal Type |
G.652/G.655/G.657 SMF and 50um/125um, 62.5um/125um OM multimode |
| Interface Type |
LC |
| Signal Type |
G.652/G.655/G.657 SMF and 50um/125um, 62.5um/125um OM multimode |
| Interface Type |
DVI-D(18+1), DVI1.0 |
| Signal Type |
DVI 1.0, HDMI 1.4a, up to 4096 × 2160@30Hz |
| Transmission distance |
300m |
| Data Rate Max. |
Max. 3.4Gbps |
| Graphic Data |
340MB/S |
| Optical Rate |
11.5GB/S |
| Power Supply |
DC 5V, 2A |
| Weight |
0.56 kg |
|
Dimension Length × Width × Height |
90mm × 40mm × 15mm |
| Operation Temperature |
-45-70℃ |
| Storage Temperature |
25℃ |
