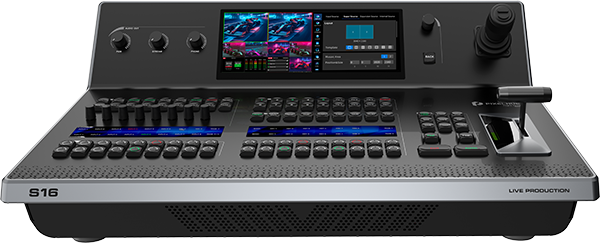

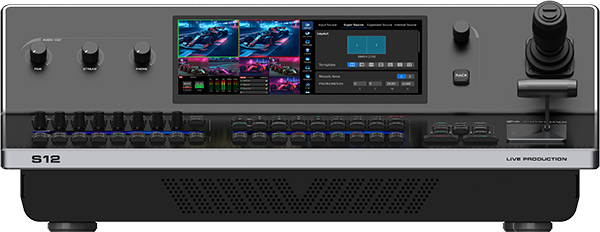

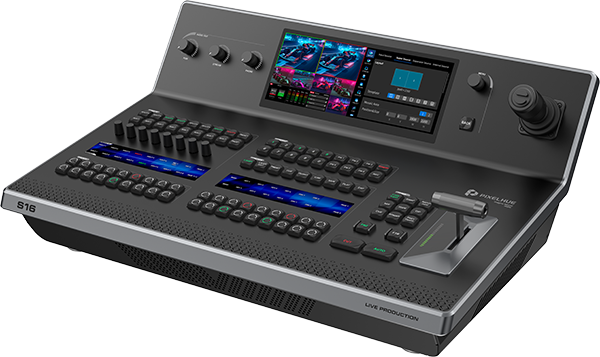

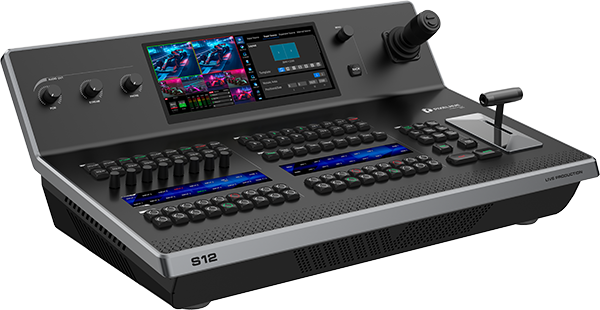

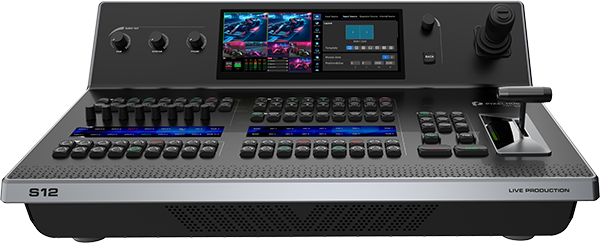

Introducing the S series, state-of-the-art live production switchers, integrated into a sleek control panel, perfect for professional tasks with unrivaled portability. Featuring up to 16 SDI and 4 HDMI inputs, UVC (USB Video Class)/RTMP, AUX outputs, 4 upstream keyers, 2 downstream keyers, SuperSource, BKGD, media players, and various transitions like MIX, DIP, and WIPE. The live production switchers include built-in streaming, recording, audio mixer, and Multiviewer. The Flagship Edition boasts up to 16 12G-SDI inputs, offering unmatched editing flexibility as a market-leading feature. Built on Pixelhue's years of expertise, both our editions cater to your live event needs, ensuring flawless execution for small venues, corporate events, entertainment and cultural occasions, sports events, houses of worships, education and training, esports and gaming, personal studios, freelancers, or broadcast vans.
Enjoy a comprehensive 4K input and output setup, allowing you to connect 4K cameras and feed 4K displays. Adaptive inputs accommodate 4K and lower resolutions, making clarity the new standard. Flexible output configurations support UHD and HD scaling, with customizable resolution options to meet the exact requirements of your event.

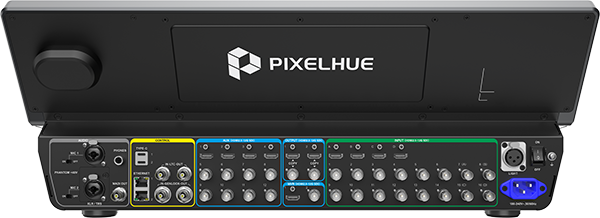

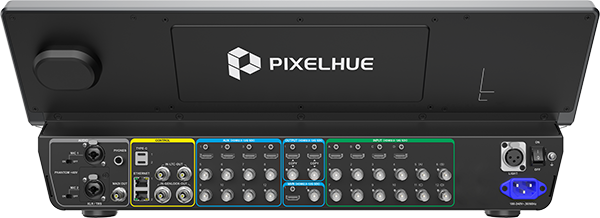

Versatile built-in AV connectivity offers comprehensive I/O capabilities for seamless handling of daily production tasks in a single compact unit. The Flagship Edition even comes with 20 connecors and 16 channels, surpassing competitors in its class. With Hybrid connector (SDI+HDMI) compatibility, it adapts to a wide range of equipment for various scenarios. Leading the industry in layer resources, it includes a BKGD, 4 upstream keyers, 2 downstrem keyers, and a SuperSource, allowing boundless creative opportunities.
Seamlessly connect to global audiences with support for major international streaming platforms and the capability for four simultaneous RTMP streams. Leading the market with a maximum 1080p UVC output, it handles live streaming and online editing tasks with ease.
Experience professional-grade monitoring, allowing for comprehensive on-site adjustments and ensuring flawless event readiness. Seamlessly control your workflow using the LCD menu operations specifically designed for live productions, monitor live videos, switch presets, access audio mixer and much more, streamlining your worflow for maximum efficiency.
Both our editions come equipped with a rich array of tactile buttons and controls, seamlessly complementing the the LCD screen to enhance your workflow. The audio area allows for effortless audio mixing, while the video area ensures smooth and reliable video routing. Easily manage versatile transitions with the dedicated transition buttons. The comprehensive controls, including knobs, faders, T-bar, and joystick, along with status indicators, provide intuitive and precise management over every aspect of your productions. Unleash your creative potential with unmatched control and sophisticated design.
Featuring a minimalist and technology-forward design, the switchers integrate a LCD screen display and streamlined appearance. User-friendly button arrangements and meticulous details provide a smooth and efficient operating experience. The easy disassembly design concept ensures easy maintenance and straightforward component replacement, providing reliability and convenience for your productions.
| S12 | S16 | ||
| Connectivity and Performance | Input |
12x 12G SDI+4x HDMI 2.0 (choose 12 from 16) |
16x 12G SDI+4x HDMI 2.0 (choose 16 from 20) |
| Output |
2x HDMI 2.0/12G SDI (copy) |
||
| Multiviewer |
1x HDMI 2.0, 1x 12G SDI |
||
| AUX |
8x 12G SDI+4x HDMI 2.0 |
||
| Streaming |
1x USB 3.0 (Type-C), up to 1080p@60Hz |
||
| Audio |
Input: 2x XLR/TRS (6.35mm) |
||
| Layer |
1x BKGD, 4x Upstream keyers, 2x Downstream keyers, 1x SuperSource |
||
| Transition |
MIX, DIP, WIPE |
||
| Physical | Net Weight |
13kg |
|
| Gross Weight |
17.5 kg |
||
| Product Diemensions |
600.0mm × 390.7mm × 232.3mm |
||
| Packaging Diemensions |
Paper box (standard): 720.0mm × 515.0mm × 340.0mm |
||
| Environment | Operation |
Temperature: 0~40℃; Humidity: 5%~85%, non-condensing |
|
| Storage |
Temperature: -20~70℃; Humidity: 5%~95%, non-condensing |
||
| Power | Power Connector |
100–240V~, 10A, 50/60Hz |
|
| Max Consumption |
175 W |
||
|
Noise on Average (typical at 25°C/77°F) |
40 dB (A) |
||
| Packing Information |
1x Power cable |
1x Quick Start Guide |
|
