JOINT CONTROL
ONE CONTROLS MULTIPLE
TIMECODE
KVM
PTZ
PROGRAMMABLE LCD BUTTONS
ENCODERS & FADERS
FOLDABLE DESIGN
VIRTUAL EVENT CONTROLLER
MIDI PROTOCOL

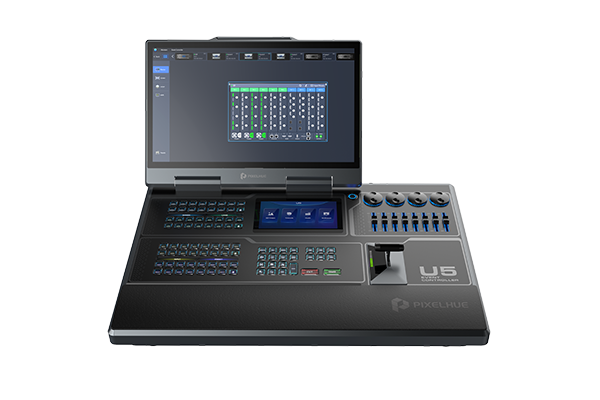

Equipped with the leading-edge core architecture and SSD(NVMe), the U5 event controller enables the most fluent and fast operations ever. With the design concept of increasing operational efficiency and satisfying the various changing needs thatmay arise fromevent scenarios, the U5 event controller comes with all the crucial functionalities that you may need. The newly-upgraded built-in software PixelFlow with always user-friendly GUI helps you manage devices, screens, layers, sources, presetsmore stably and easily. The magnificient interactive design maximizes user convenience and shortens your learning curve. Convenient control over multiple presentation switchers and media servers greatly simplifies your on-site deployment and brings more convenience and ease to your events. In addition, timecode generating and accepting support, timecode format conversion ability and MIDI support add extra value to all spectacles.

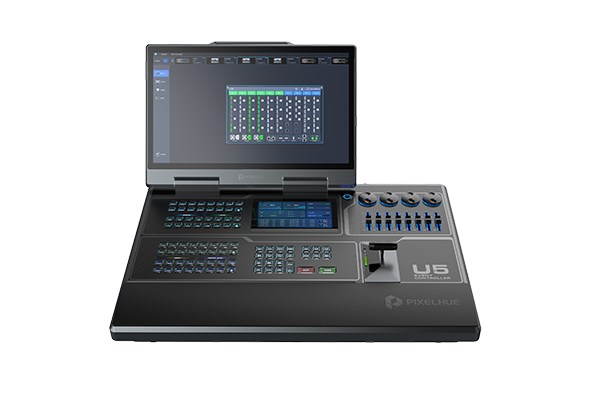

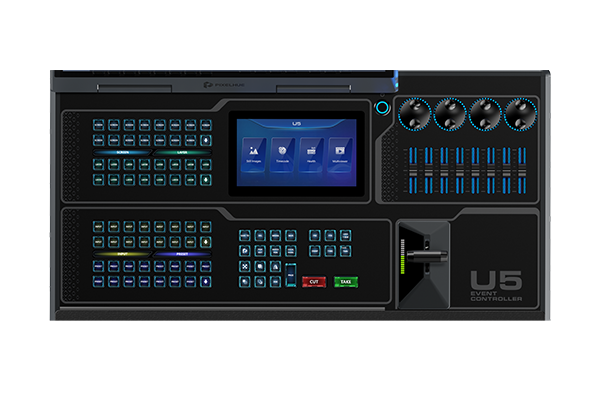

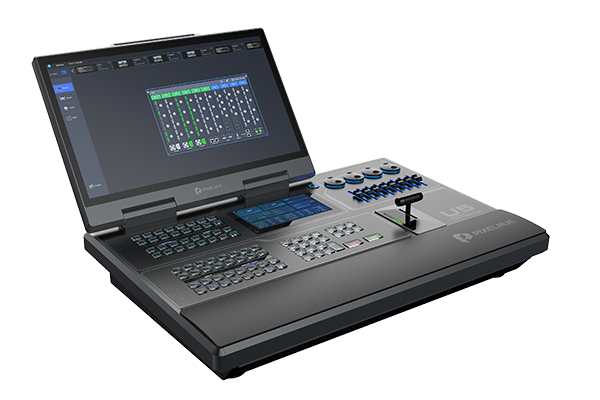

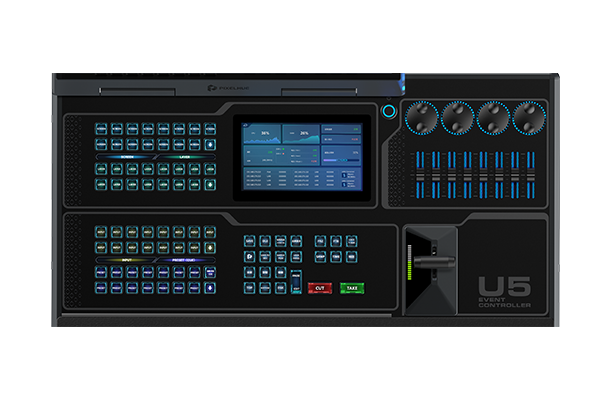

The U5 event controller comes with a compact size and lightweight ruggedized housing, 87 user-programmable LCD buttons, four encoders and eight faders, a high-resolution T-bar, etc. to bring you the maximum ease of use for your events. What's more, the stunning design of 21.5” Main Touchscreen and 8” Smart Touchscreen enables the more visualized and convenient operations, as well as a foldable design makes it easily survive in any road trips. All these make it the perfect solution for various spectacular live events.
Built-in upgraded software PixelFlow with more user-friendly GUI,
shorter learning curve
Timecode generating, receiving and conversion abilities; LTC, MTC
and MIDI USB timecode formats support
Simultaneous control over multiple switchers and media servers
Control over third-party devices via MIDI protocol
KVM function
PTZ control
Compact size
High anticorrosive aluminum housing, lightweight body design
Foldable design, with main screen readable and operationable at 45
to 125°
21.5'' Main Touchscreen and 8'' Smart Touchscreen for
visualized and convenient operations
Smart Touchscreen for displaying still images, timecode,
device health and Multiviewer
4x encoders and 8x faders, configurable as internal software
function buttons or as MIDI buttons
User-programmable LCD indication buttons for names, pages
and more
Free replacement of button skin and styles
Unique design for convenient disassembly and easy
maintenance
| Dimensions(with handles, rack ears & rack mount) |
740 mm × 651.4 mm × 431.6 mm |
| Product Weight |
24 kg (Net weight) |
| Noise on Average (@1, 0.75m height) |
40 dB |
| Electrical Parameters |
Power connector: AC100 V‒240 V 50/60Hz |
| Operating Conditions |
Operating Environment: |
| Safety Compliance |
CE, FCC, IC (In progress) |
| Packing Information |
• 1x Optional Power Cable |
