EDGE BLENDING
TIMELINE
HDMI/DP
EDID LOCK
XLR AUDIO
8K
UNLIMITED LAYERS
REALTIME PREEDIT
NDI
SLICE FUNCTION
• 8K or multiple 4K hardware decoding and rendering for smooth playback and flawless output
• EDID lock, ensuring output resolution unchanged
• High quality XLR audio outputs (L and R channels)
• Remote or central control via TCP/UDP protocol
• 2U rack mountable chassis
• Intelligent thermal solution
• Pass stress and stability tests
• Industrial ruggedized design
• Fully-visualized and friendly graphical UI, what you see is what you get
• Customizable graphical UI layout
• UI lock for safer unattended operation
1. Capability
a. Smooth playback of 1x 8K2K@60fps video or 2x 4K2K@60fps videos
emsp;b. Unlimited layers and slices
2. Outputs
emsp;a. 2x 4K2K@60Hz outputs via 2x HDMI 2.0 and 1x DP 1.2
emsp;b. Three connector mosaic output support, with the mosaic width or height of up to 16384 pixels
3. Inputs
emsp;a. 2x 4K2K@30Hz inputs via 2x HDMI 1.4
emsp;b. NDI, streaming media and web page inputs
4. Audio
emsp;a. XLR audio: 1x AUDIO OUT L, 1x AUDIO OUT R
emsp;b. 1x 3.5 mm MIC IN, 1x 3.5 mm LINE IN, 1x 3.5 mm LINE OUT
emsp;c. Formats: mp3, aac, flac, amr, ape, wav, wma, ogg
5. Control
emsp;a. Built-in Pilot MS3 Pro Multimedia Playback Software
emsp;b. Remote and central control via TCP/UDP protocol
emsp;c. 1x HDMI 1.3 connector for software UI
emsp;d. 2x USB3.0 on front panel, 2x USB3.0 and 2x USB2.0 on rear panel
• Separate live and pre-edit working modes, reliable support for live events
• Playback and real-time editing of all categories of media, including videos, pictures, audio, web pages, PowerPoint documents, acquisition devices and NDI inputs
• Various playback modes, including single program, single media, media collection, cross-program media and jump playback
• Unlimited layers and unlimited programs
• Innovative slices for diversified visual applications
• Visualized management of stage, timeline, programs, slices, various media, input sources and playback progress
• Flexible output segmentation, irregular slices, layer mapping, edge blending and super-large display and more, fully realize your creative ideas
• Tailor your UI instantly: Save and access layouts with ease
• Automatic software startup, restart, shutdown and program playback, bring intelligent unattended and automated management
• Auto preview and preview editing of next program
• Media optimization for better media performance
• Media image quality adjustment
• Media flipping, stretching, cropping supported
• Crossfade and cut effects on program switching
• Decoding of various mainstream video formats
• Output mapping and identification for clear screen and connector correspondence
• Project file management and packaging
• Peripheral control and shortcut management, and more powerful features on the way

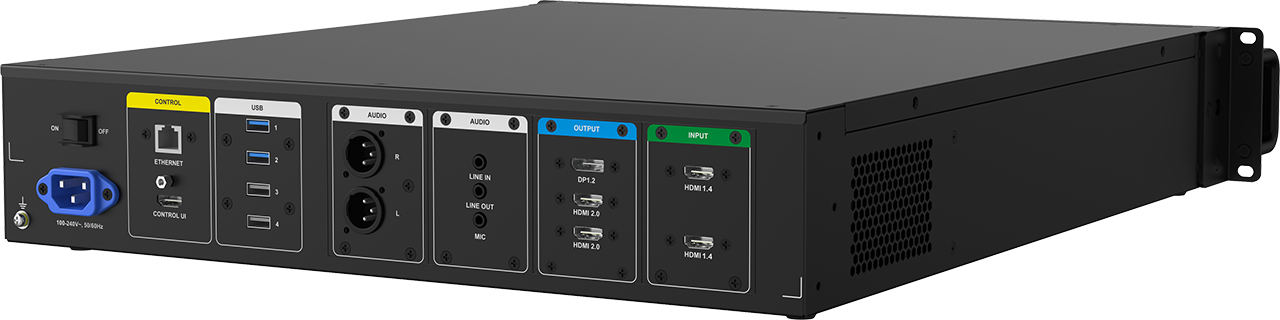

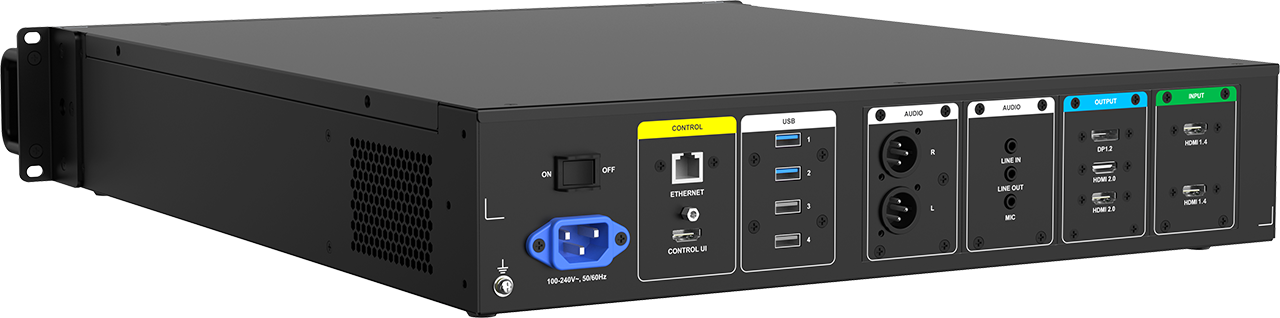

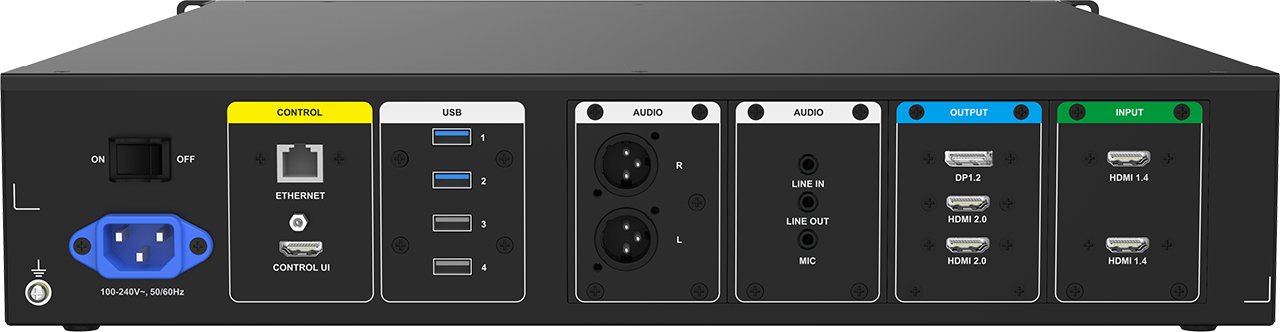

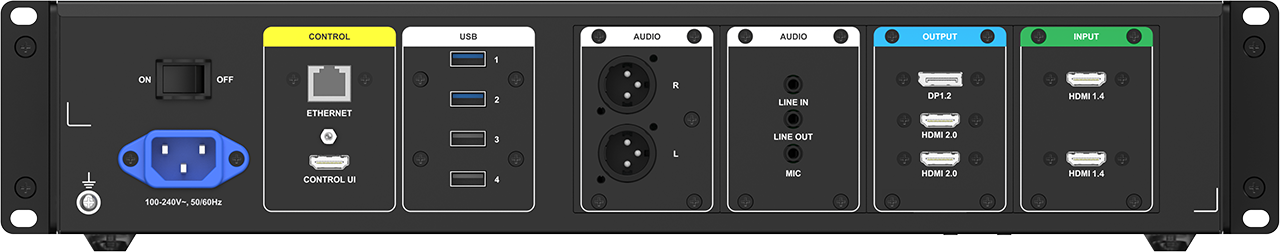

• HDMI 1.3 monitoring connector dedicated for software UI
• XLR audio outputs and 3.5 mm audio inputs and output
• HDMI input/output and DP output
• Multiple USB 3.0 and USB 2.0 connectors for mouse, keyboard and USB drives
| Dimensions |
L482.6 mm x P 576.3 mm x H 88.1 mm |
| Product Net Weight |
10 kg / 22.05 lbs (Fully loaded without accessories) |
| Electrical Parameters |
Power connector: 100–240V~, 50/60Hz |
| Noise on Average (typical at 25°C/77°F) |
Front: 48.5 dB |
| Operating Conditions |
Temperature: 0°C to 45°C |
| Storage Conditions |
Temperature: –10°C to +60°C |
| Safety Compliance |
CE, FCC, IC, CB, KC |
| Packing Information |
• 1x Power cable |
