HDMI2.0
HDBaseT
Dual Link DVI
4K
DP1.2
Web Control
Low Latency
12G-SDI
HDCP

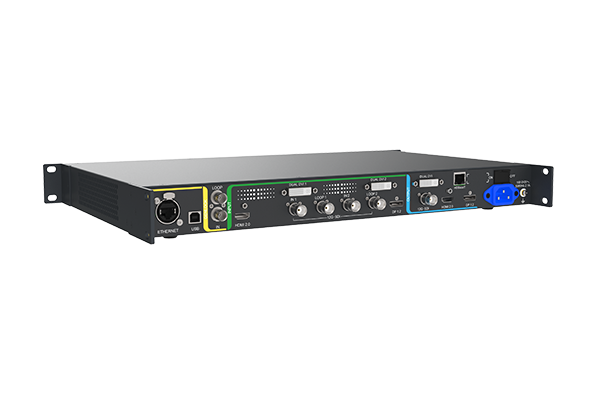

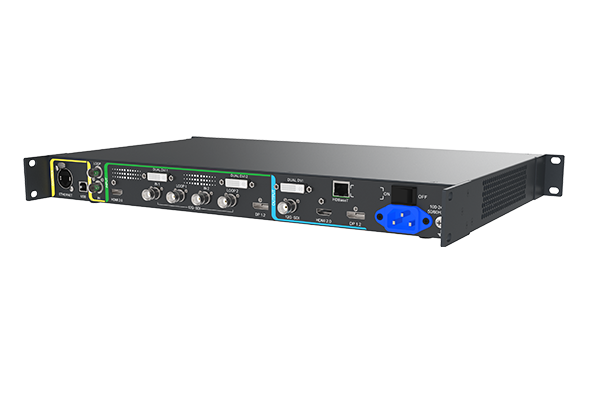

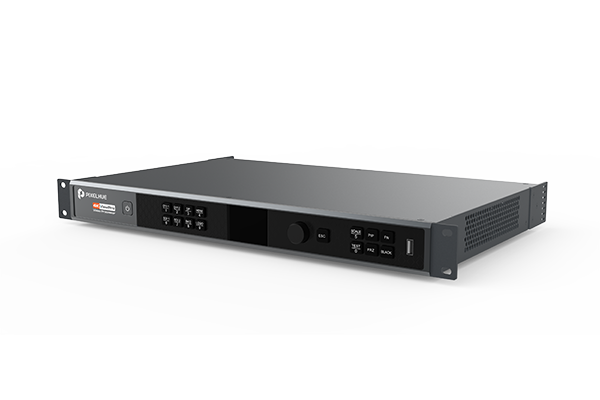

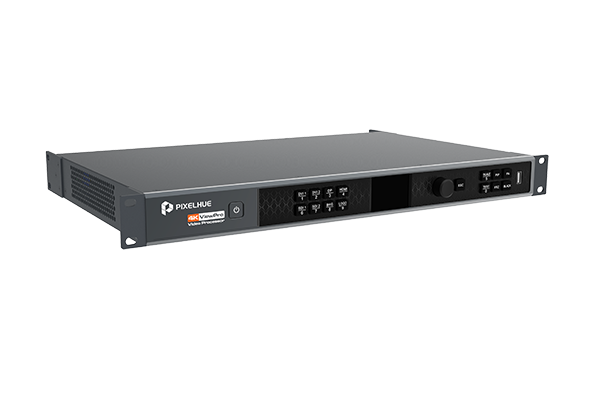

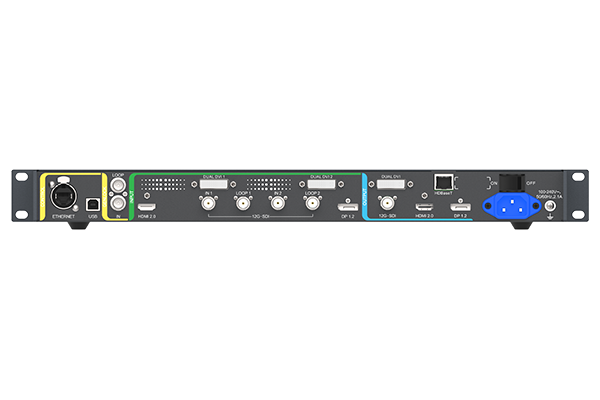

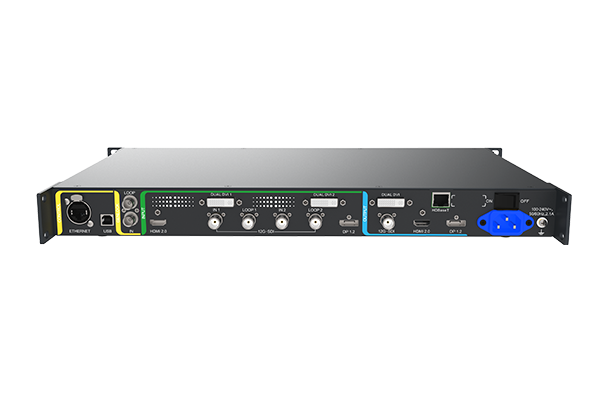

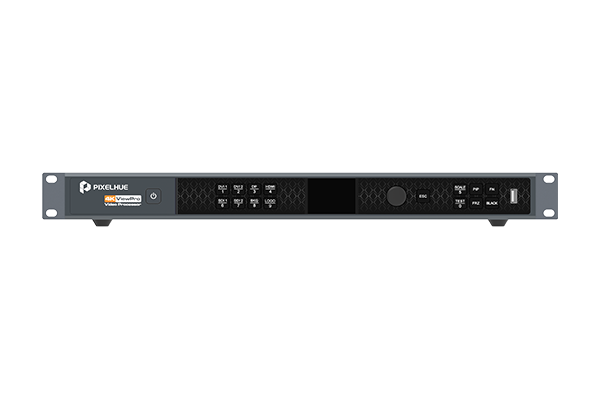

The 4K View Pro is a powerful real 4K video processor with a latency as low as 1
frame, which supports 4K×2K@60Hz video input and output. Hardware has been
designed with a robust FPGA system architecture, high-performance Scalar core,
and ultra-low latency. The 4K ViewPro allows multiple ultra HD real
4K×2K@60Hz input and output for scaling, switching, and signal conversion to
provide a perfect image processing experience.
The 4K View Pro can be widely used for high-end rental, stage control, fine pitch
LED displays and broadcasting stations.
| 12G SDI | 2 |
• Up to 4K×2K@60Hz 4:2:2 10-bit • Level A & B • Support for ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and SMPTE 259 (SD) • Common resolutions ◦ 1920×1080i@50/59.94/60Hz ◦ 1920×1080@30/50/59.94/60Hz ◦ 3840×2160@30/50/59.94/60Hz |
| 12G SDI LOOP | 2 |
• Re-drived 12G SDI loop-through output |
| HDMI 2.0 | 1 |
• Up to 4K×2K@60Hz 4:4:4 8-bit • HDCP 2.2 compliant • Backward compatible with HDMI 1.4 and HDMI 1.3 • EDID management for VESA, and CVT compliant user timings • Common resolutions ◦ 3840×1080@30/50/59.94/60Hz ◦ 1920×1080@30/48/50/59.94/60Hz ◦ 3840×2160@30/60Hz |
| DP 1.2 | 1 |
• Up to 4K×2K@60Hz 4:4:4 10-bit • HDCP 1.3 compliant • Backward compatible with DP 1.1 • EDID management for VESA, and CVT compliant user timings • Common resolutions ◦ 3840×1080@30/50/59.94/60Hz ◦ 1920×1080@30/48/50/59.94/60Hz ◦ 3840×2160@30/60Hz |
| Dual DVI | 2 |
• Up to 4K×2K@30Hz, clock frequency up to 165 MHz in single-link mode, 300 MHz in dual-link mode • HDCP 1.4 compliant • EDID management for VESA, and CVT compliant user timings • Common resolutions ◦ 3840×1080@30/50/59.94/60Hz ◦ 1920×1080@30/48/50/59.94/60Hz |
| HDMI 2.0 | 1 |
• Up to 4K×2K@60Hz 4:4:4 8-bit • Max. output width: 8192 pixels • Max. output height: 4096 pixels • Support for VESA/CVT and user timings • Backward compatible with HDMI 1.4 and HDMI 1.3 |
| DP 1.2 | 1 |
• Up to 4K×2K@60Hz 4:4:4 10-bit • Max. output width: 8192 pixels • Max. output height: 4096 pixels • Backward compatible with DP 1.1 • Support for VESA/CVT and user timings |
| 12G SDI | 1 |
• Up to 4K×2K@60Hz 4:2:2 10-bit • Level A • Support for ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and SMPTE 259 (SD) |
| Dual DVI | 1 |
• Up to 4K×2K@30Hz, clock frequency up to 165 MHz in single-link mode, 300 MHz in dual-link mode • Max. output width: 4096 pixels • Max. output height: 4096 pixels • Support for VESA/CVT and user timings |
| HDBaseT | 1 |
• Up to 4K×2K@30Hz 4:4:4 8-bit • HDBaseT 2.0 & HDBaseT 1.0 compliant • Up to 297 MHz pixel clock • Up to 100 meters over CATx cable |
